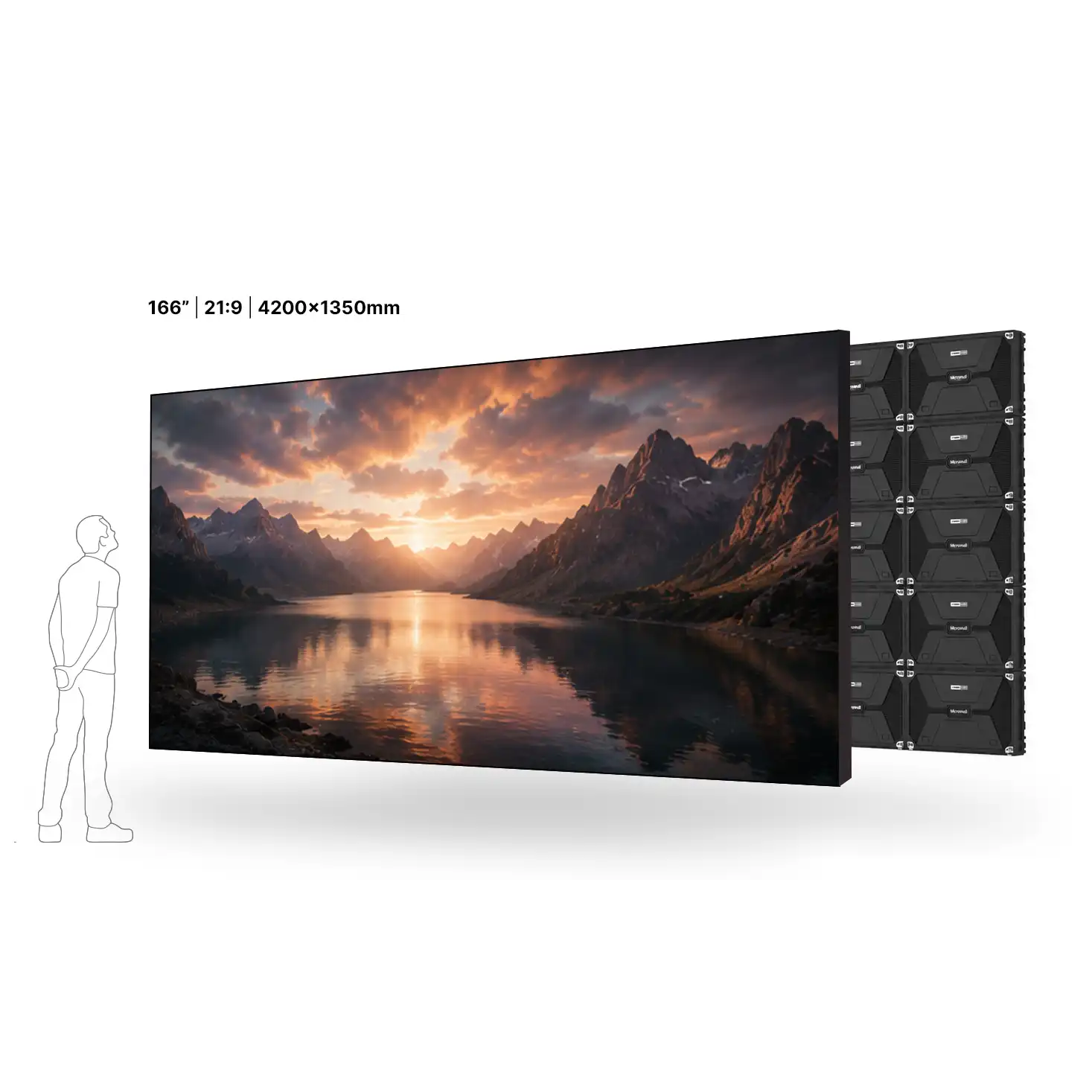

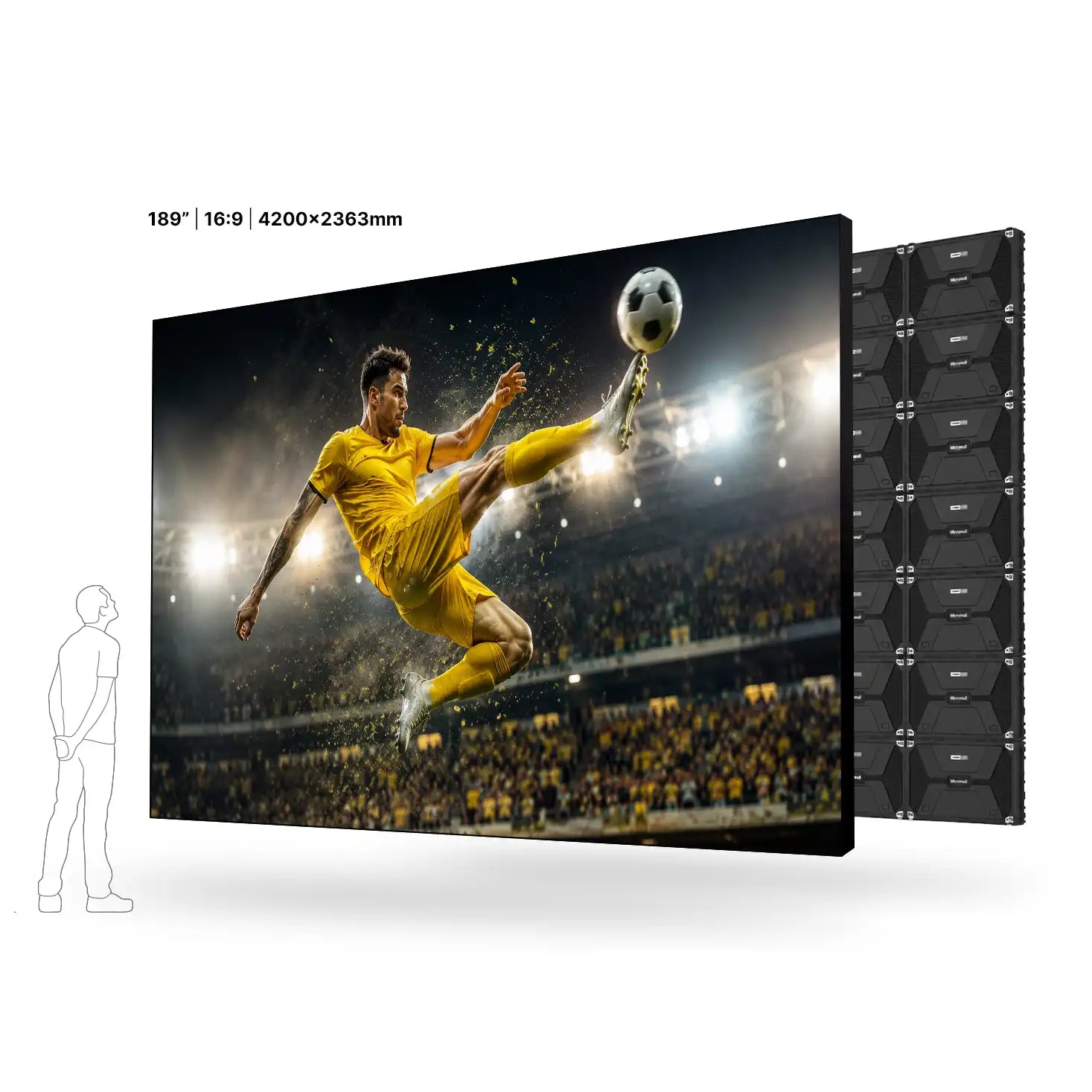

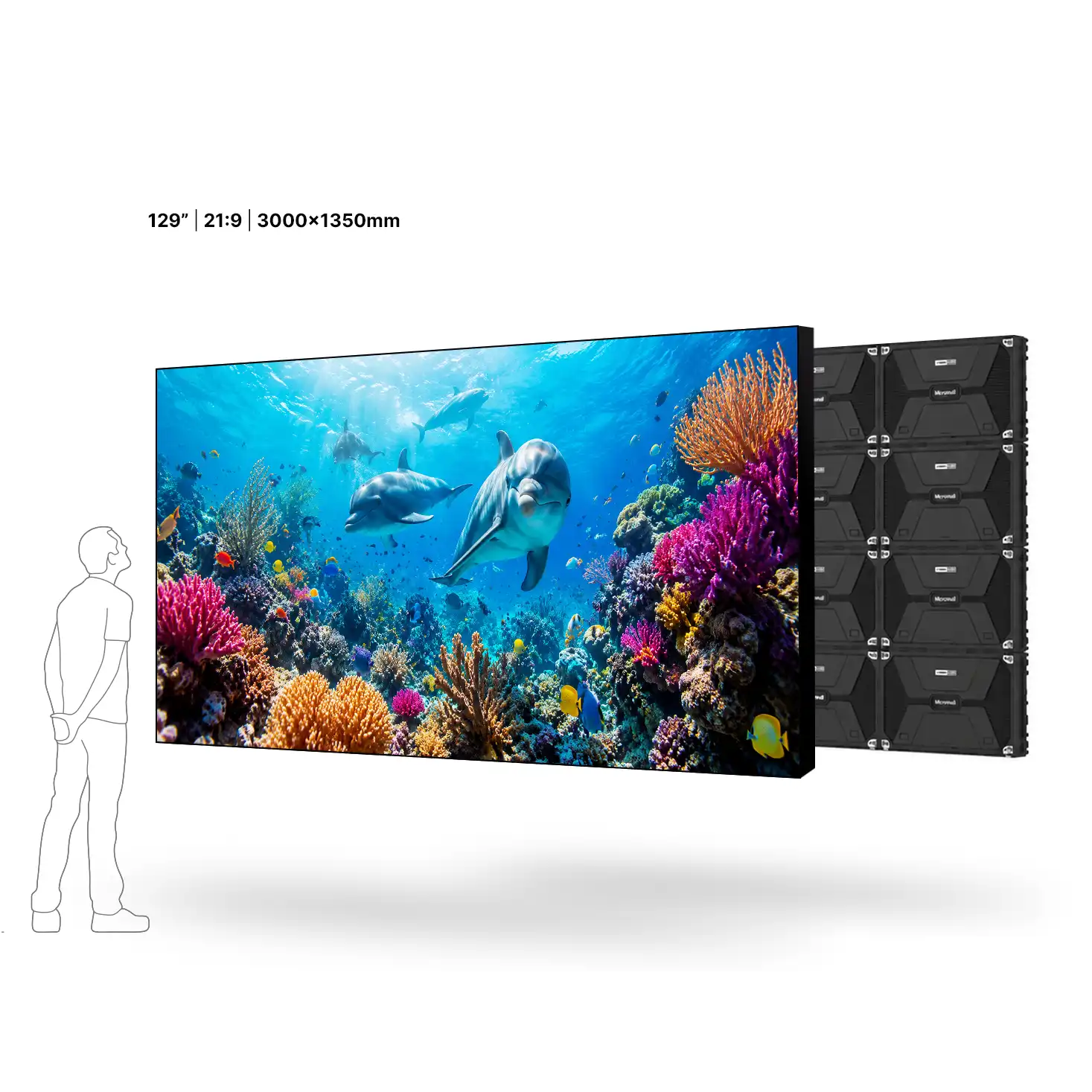

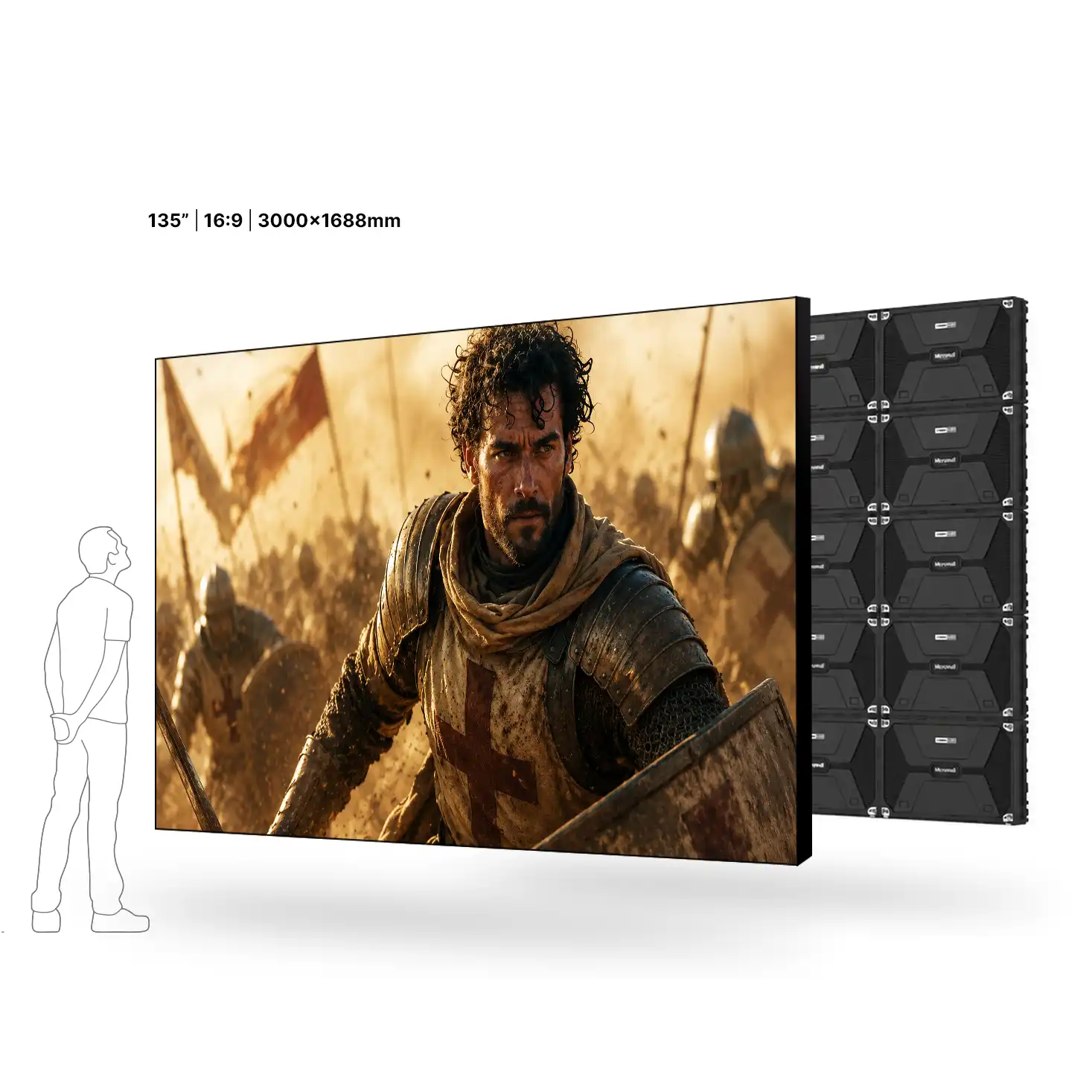

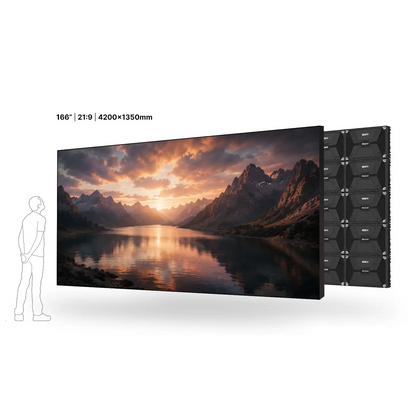

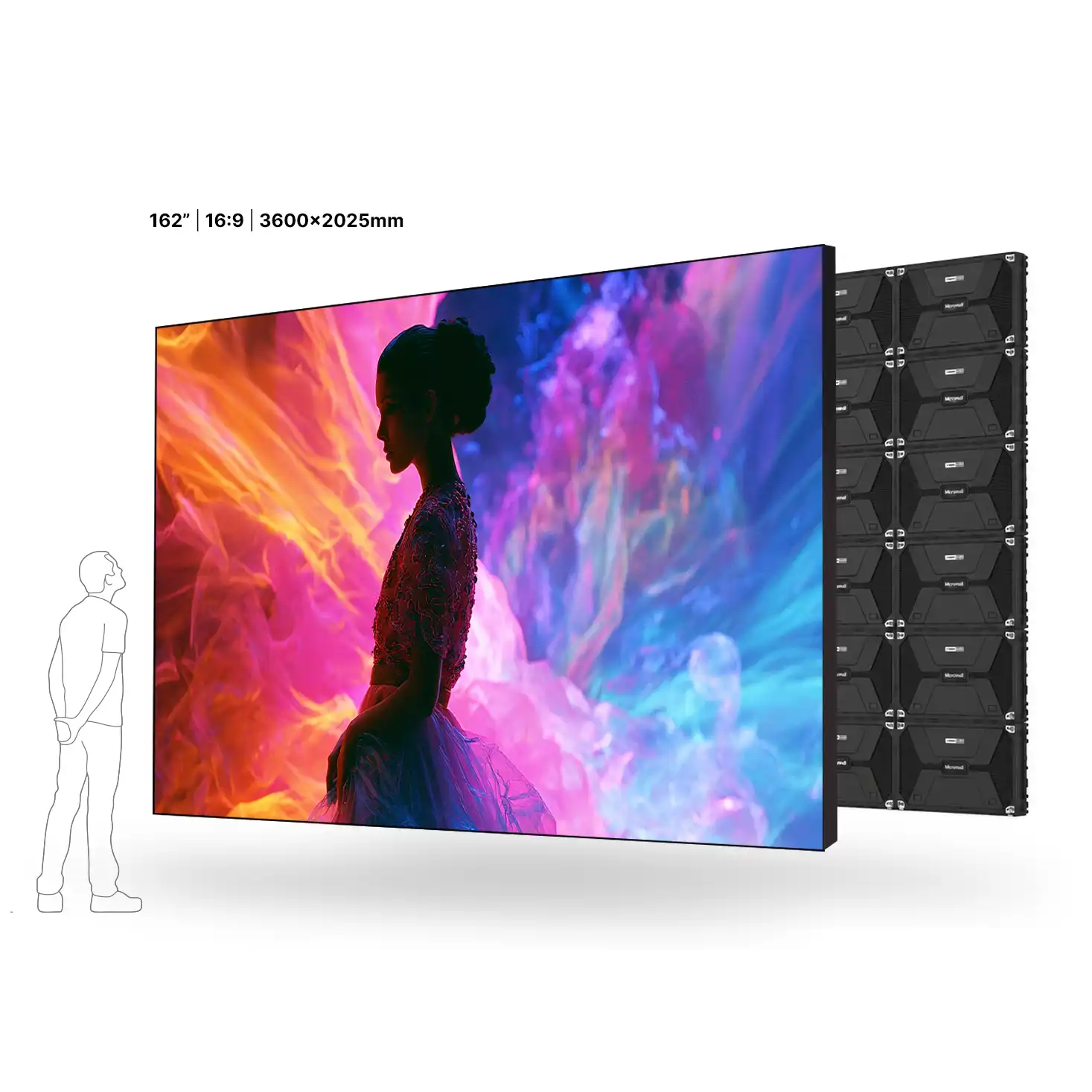

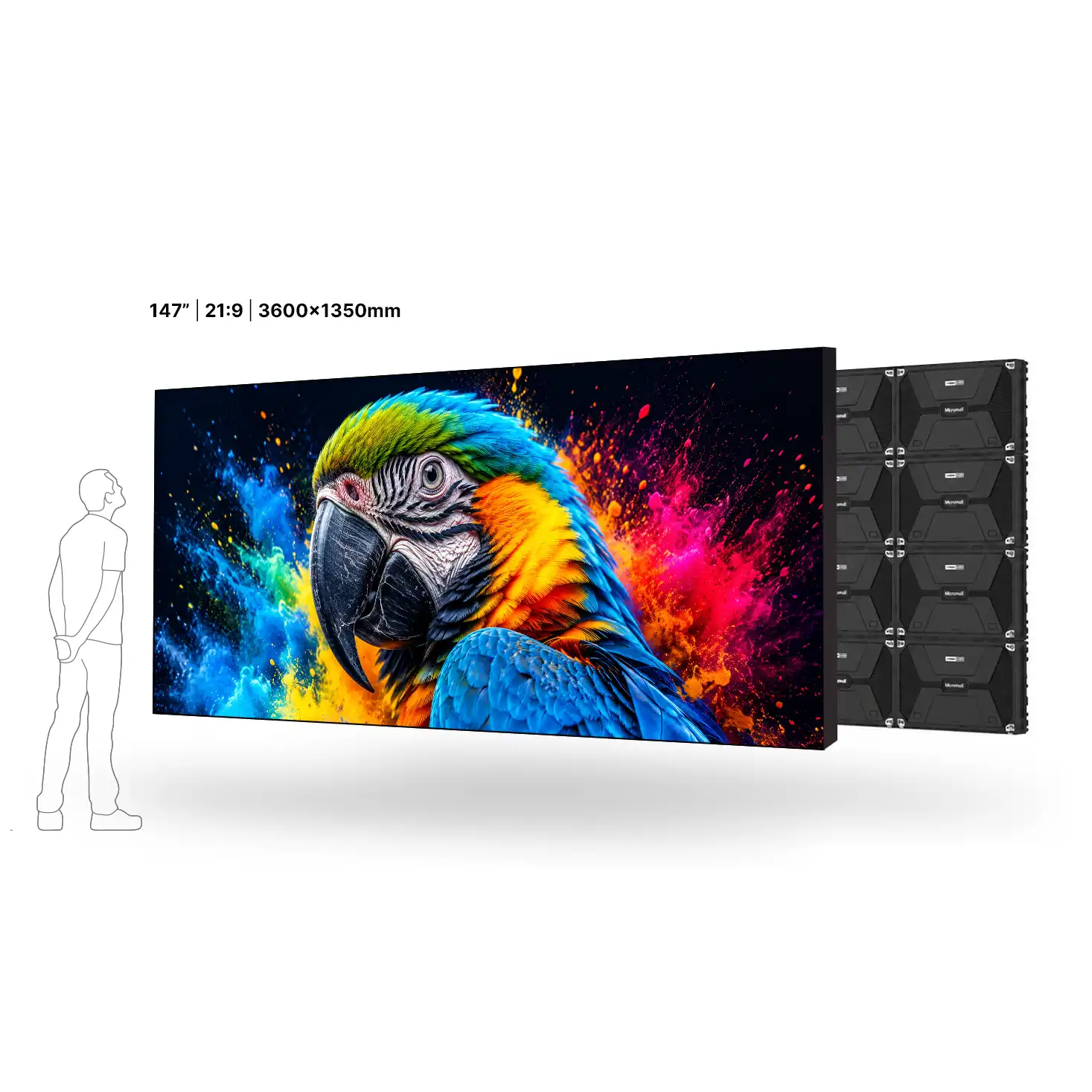

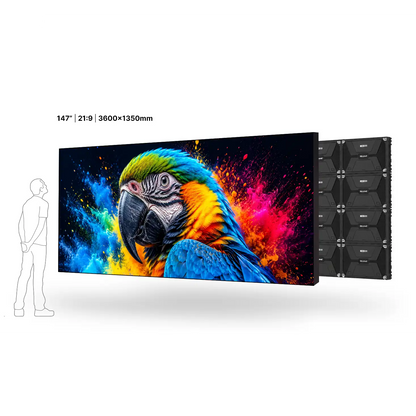

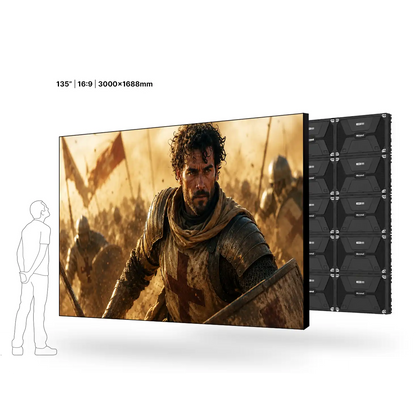

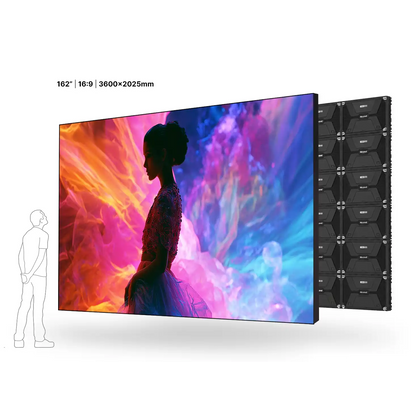

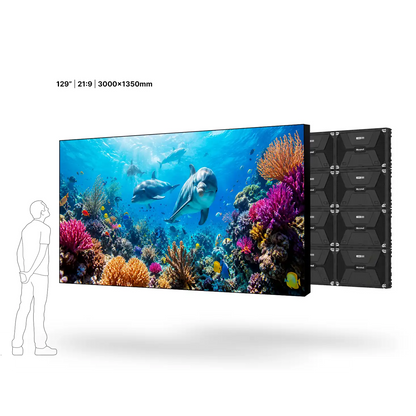

MicroWall luxury MicroLED displays redefine what is possible in premium home entertainment. Combining extraordinary image quality with seamless design and immersive large-format viewing, MicroWall is engineered for dedicated home cinemas and sophisticated media spaces. Available from 108" to 162" and beyond.














Free UK Delivery
Secure Payment
3 Years Warranty
Full Technical Support
See Every Detail with HDR10+
HDR10 reveals brighter highlights, deeper blacks and over 1 billion colours, bringing films, sport and games to life with exceptional realism and detail.

Why CoB MicroLED Outperforms Standard SMD LED

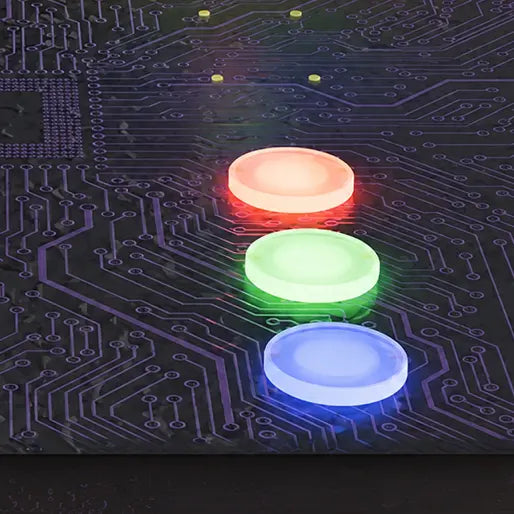

At the heart of every MicroWall display is advanced Chip-on-Board MicroLED technology. Unlike traditional SMD LED, where individual LED packages sit on the surface, CoB integrates the LED chips directly onto the display board and protects them beneath a smooth encapsulated layer.
This creates a more refined, uniform image with deeper blacks, reduced reflections and excellent close-viewing performance – ideal for luxury home cinemas, media rooms and premium commercial interiors.
CoB also improves durability and reliability. The sealed surface helps protect the display from dust, touch and everyday impact, while advanced Flip Chip architecture supports greater efficiency, improved heat management and long-term performance.
Unlike projection, MicroWall maintains exceptional brightness, contrast and colour accuracy throughout the day and evening, even in rooms with ambient light.
Why Choose MicroWall?
| MicroWall COB | Projection | Large OLED Display | |
|---|---|---|---|
| Daytime Performance | ✓ | — | ✓ |
| Ultra-Large Screen Sizes | ✓ | ✓ | Limited |
| No Lamps to Replace | ✓ | — | ✓ |
| Deep Blacks | ✓ | Moderate | ✓ |
| Architectural Integration | ✓ | Moderate | Limited |
| Long Operational Life | ✓ | Moderate | ✓ |
| Immediate Start-Up | ✓ | — | ✓ |

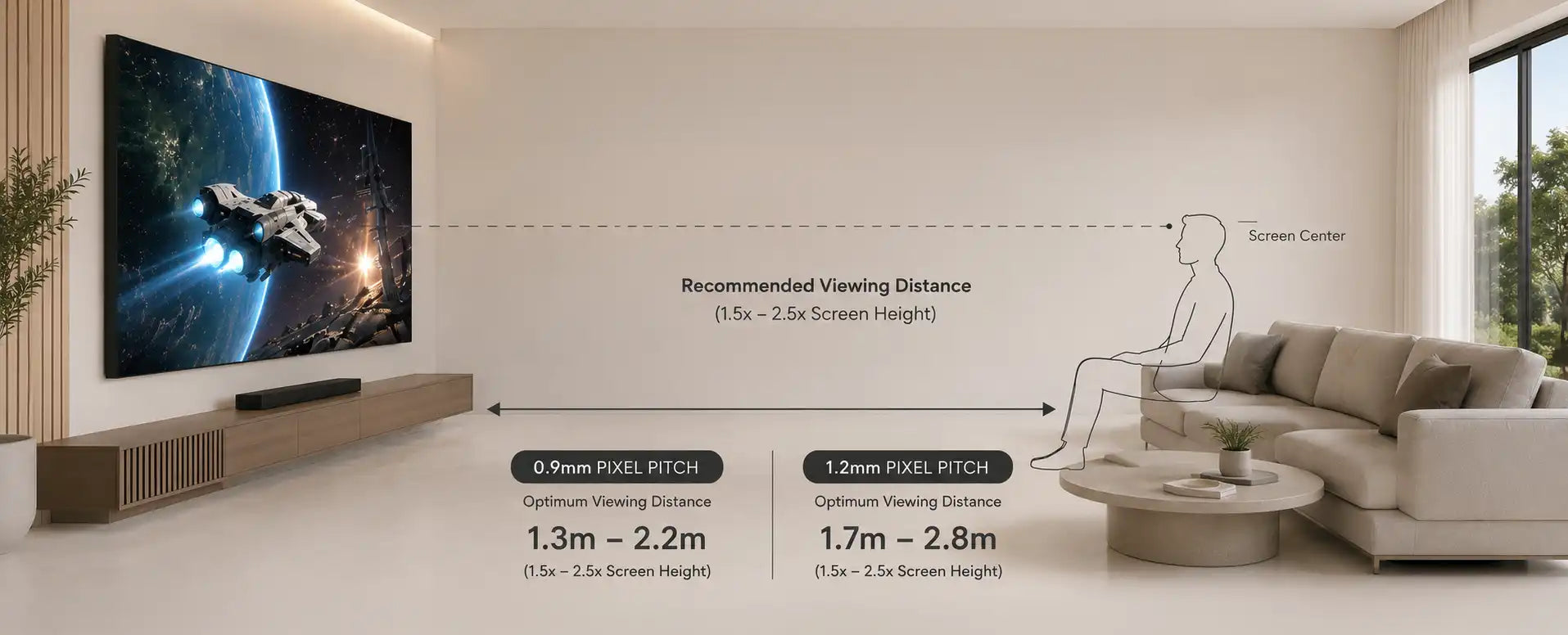

Find Your Perfect Viewing Distance
MicroWall is engineered to deliver exceptional clarity at every size, with the ideal viewing distance helping you experience the full benefits of MicroLED technology. Our 0.9mm pixel pitch displays are optimised for closer viewing in dedicated cinemas and premium spaces, while 1.2mm displays are ideal for larger rooms and open-plan environments. Our team can help specify the perfect combination of screen size and pixel pitch for your space.

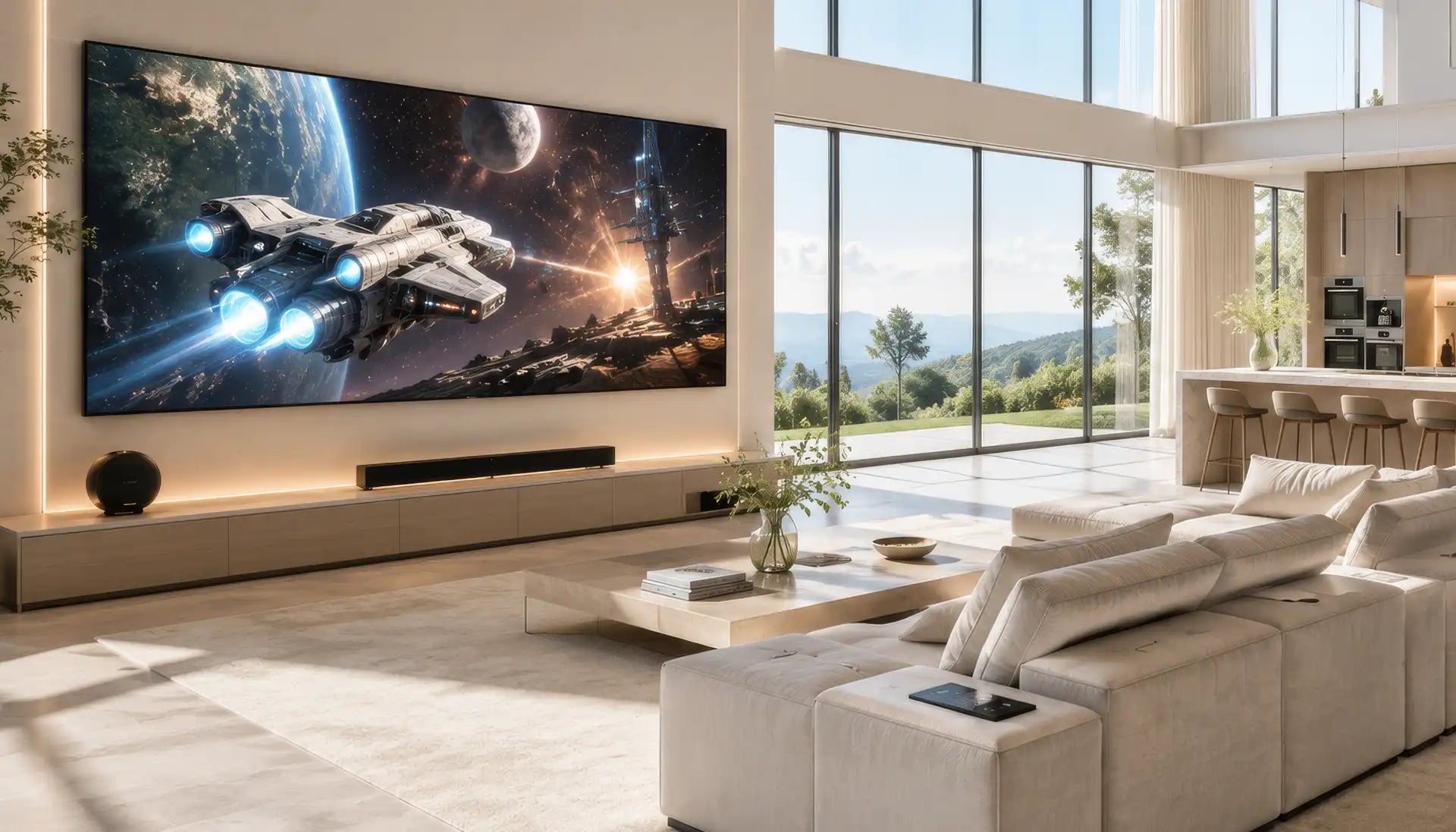

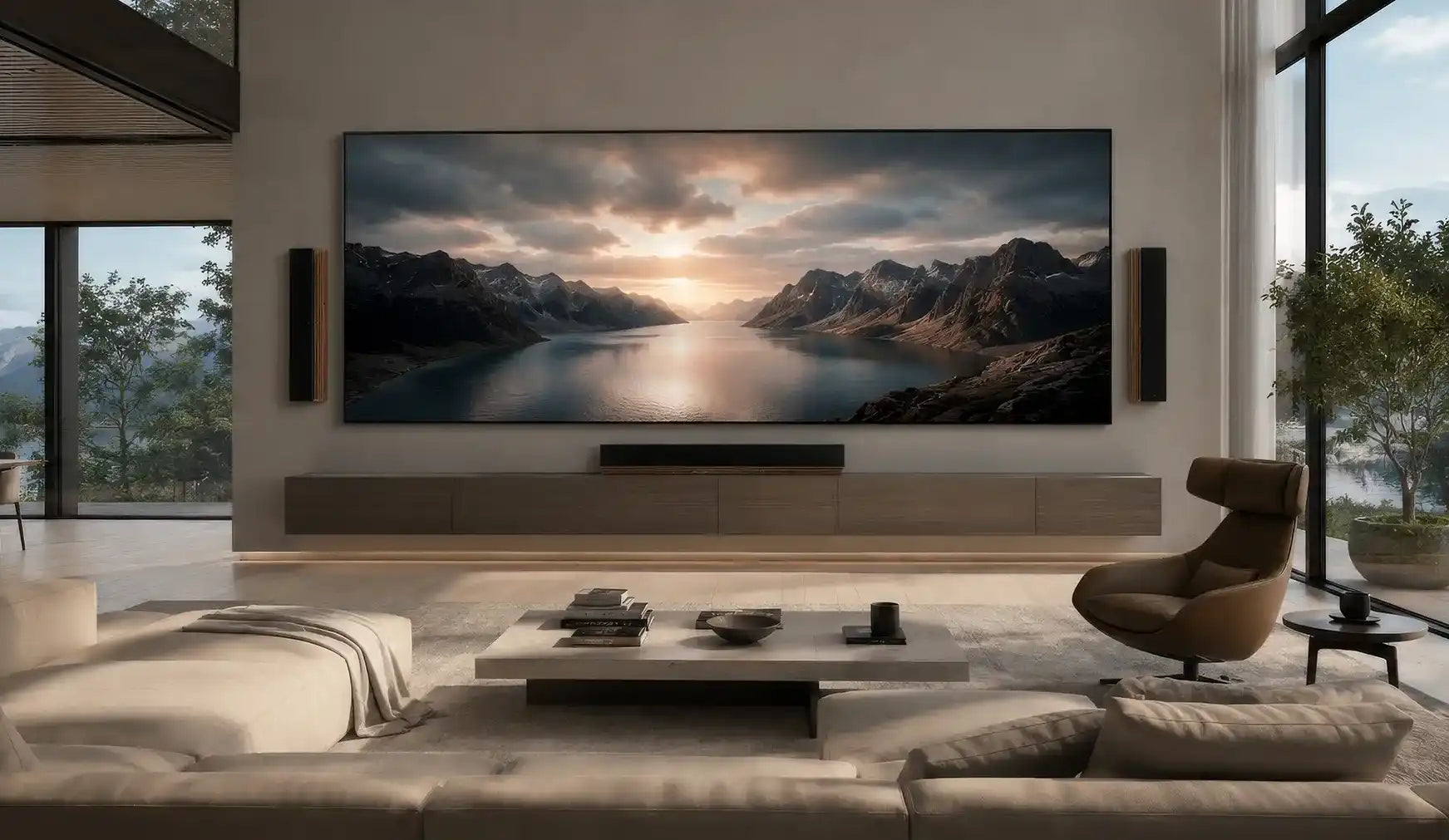

Designed Around Your Space

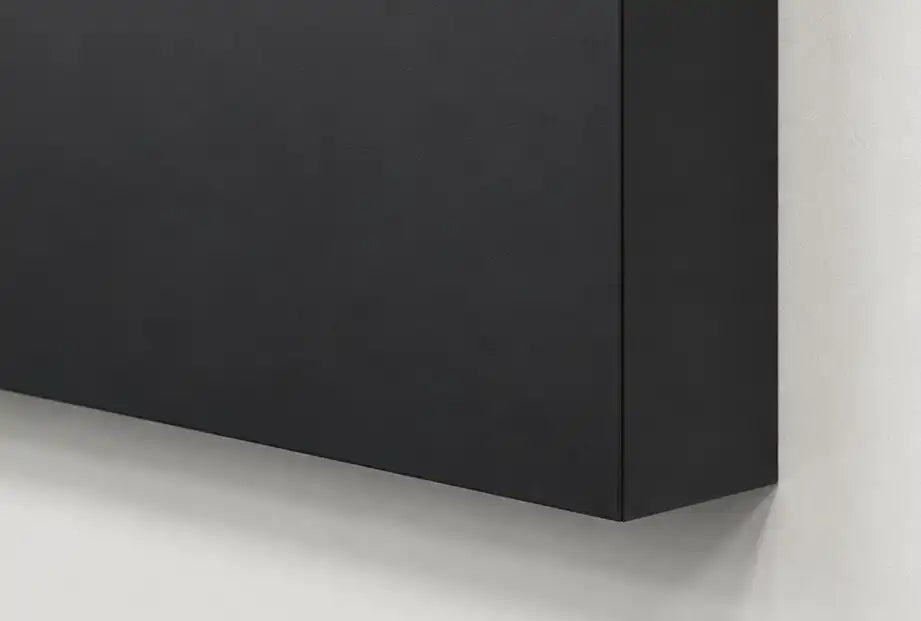

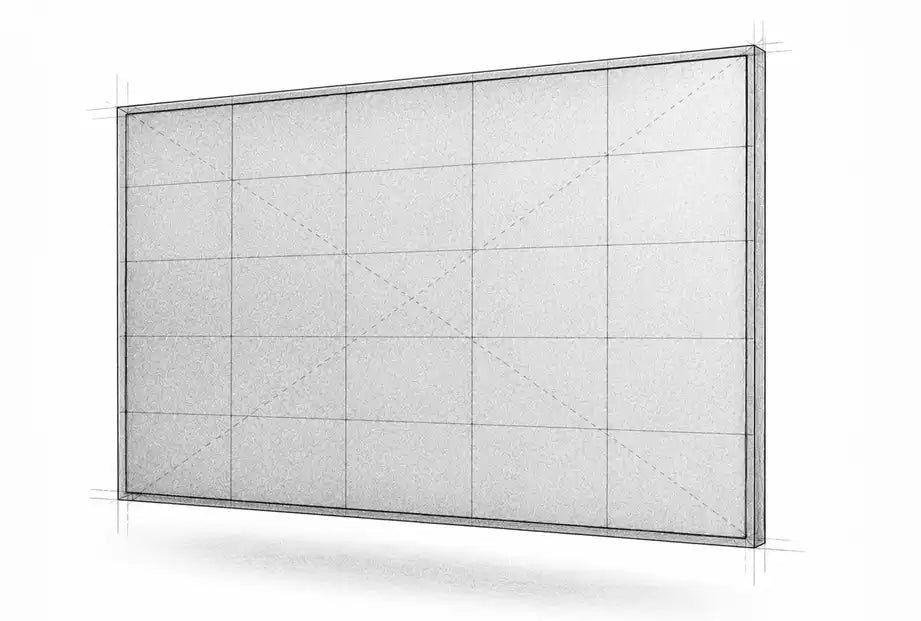

MicroWall has been created to integrate naturally into luxury interiors. Its slim profile and modular construction allow displays to become an architectural feature rather than a piece of technology.

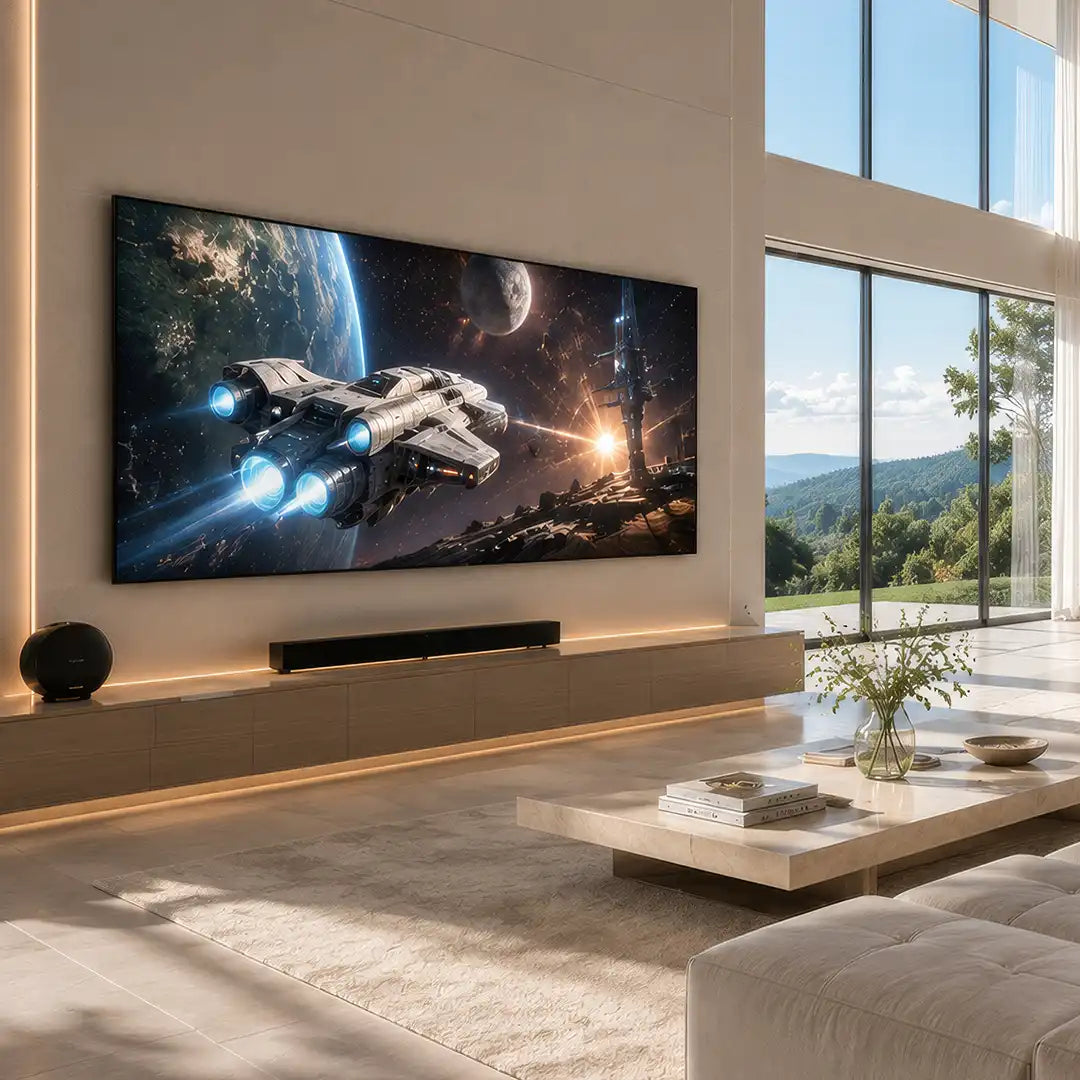

Whether installed within a dedicated cinema room, open-plan media space or multi-purpose living area, MicroWall provides a refined solution tailored to your environment.

Experience More with Multi-View
With integrated Multi-View technology, MicroWall can display several content sources at once, transforming a single display into a sophisticated entertainment and information hub. Enjoy live sport, news, streaming services and connected devices simultaneously without compromise.
Commercial MicroLED Solutions
MicroWall is equally at home in workplaces, public spaces and immersive environments, combining exceptional image quality with the reliability required for demanding commercial applications.

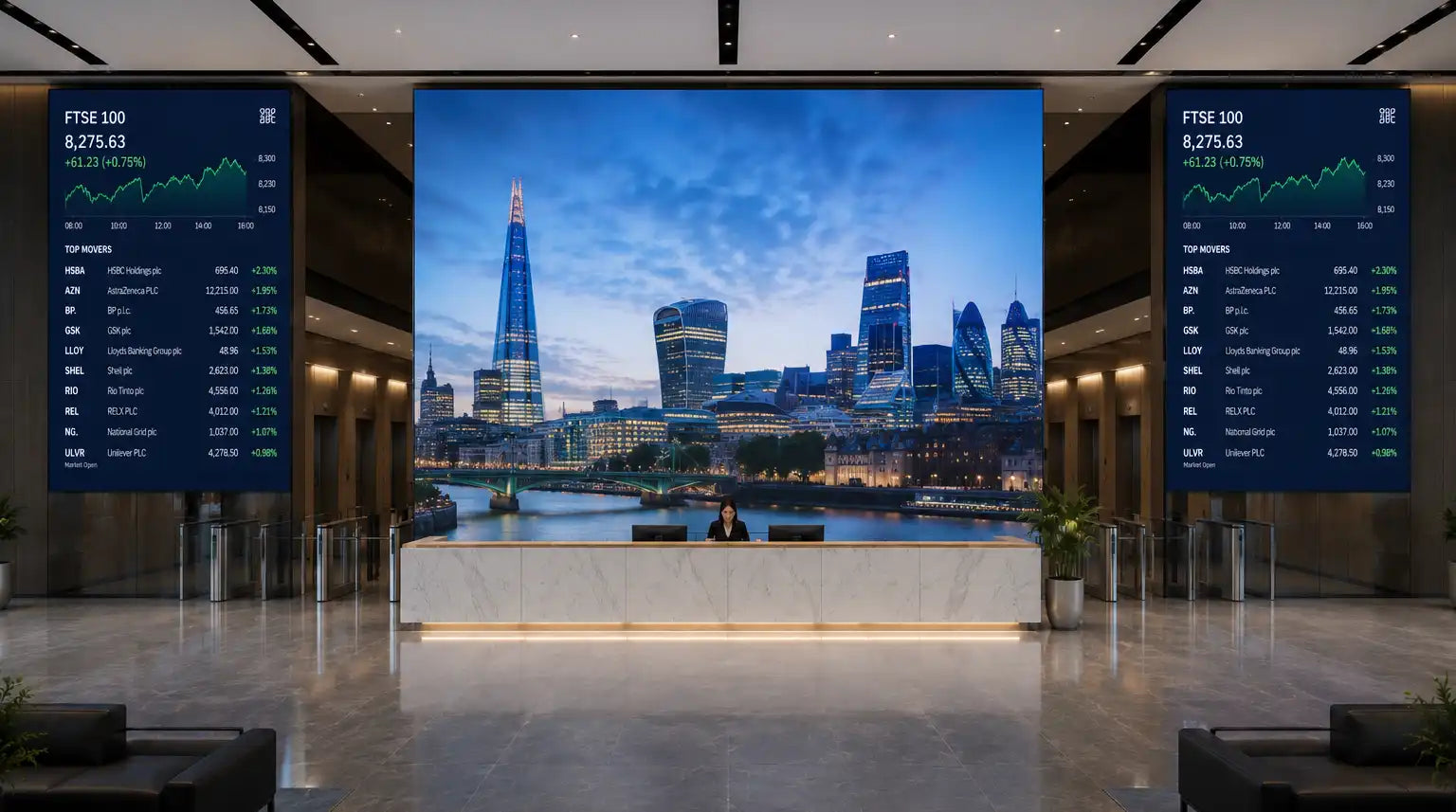

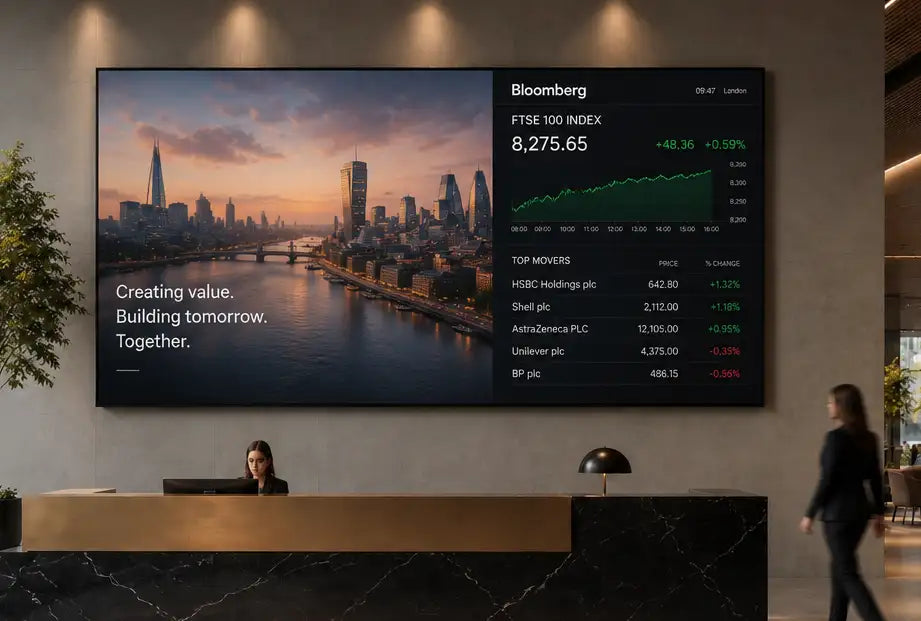

Create an unforgettable first impression with vibrant large-format displays designed to elevate workplace environments.

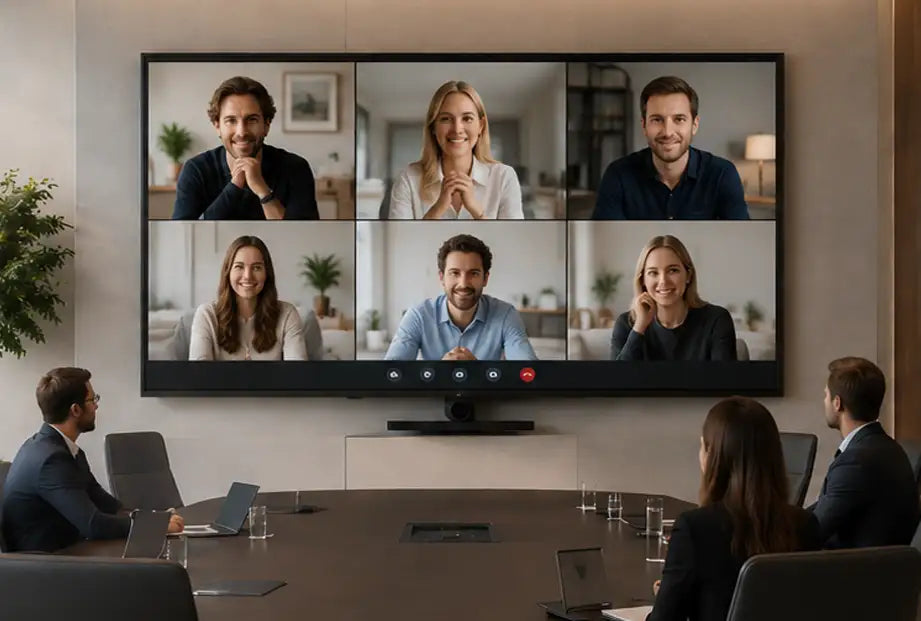

Enhance presentations, collaboration and video conferencing with exceptional clarity, colour accuracy and brightness.

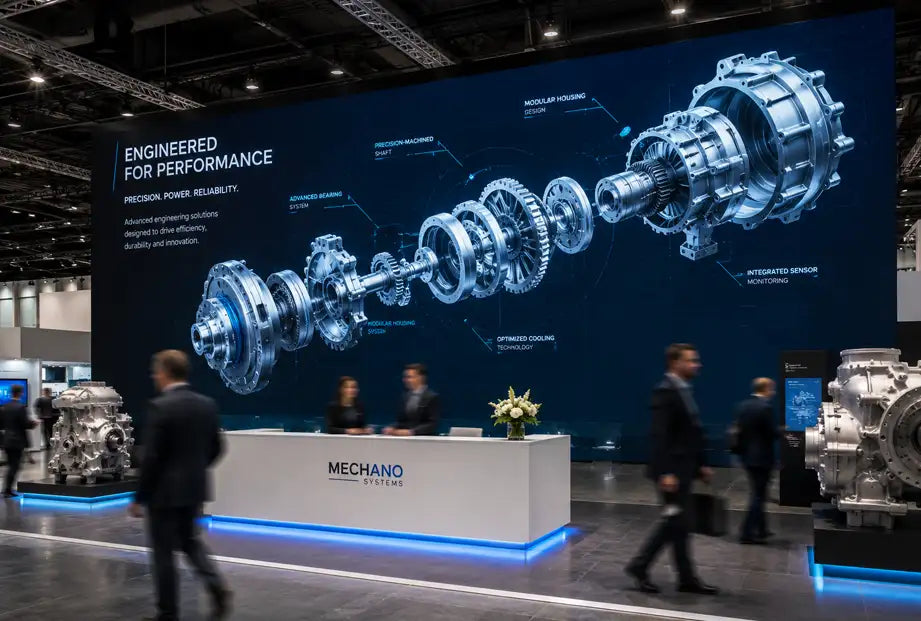

Capture attention with impactful visual experiences that stand out in busy exhibition and live event environments.

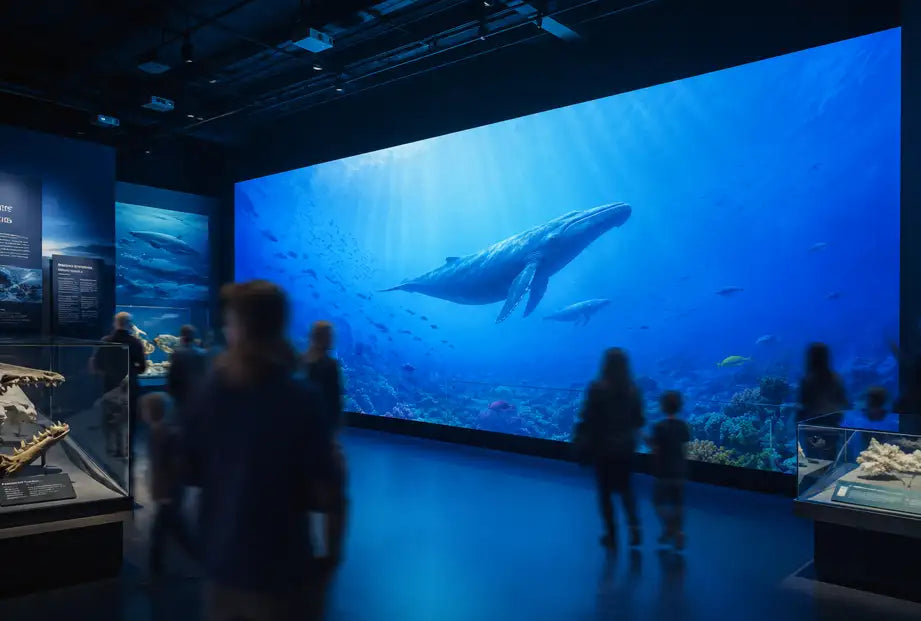

Bring stories to life through engaging visual displays designed for educational, cultural and immersive environments.

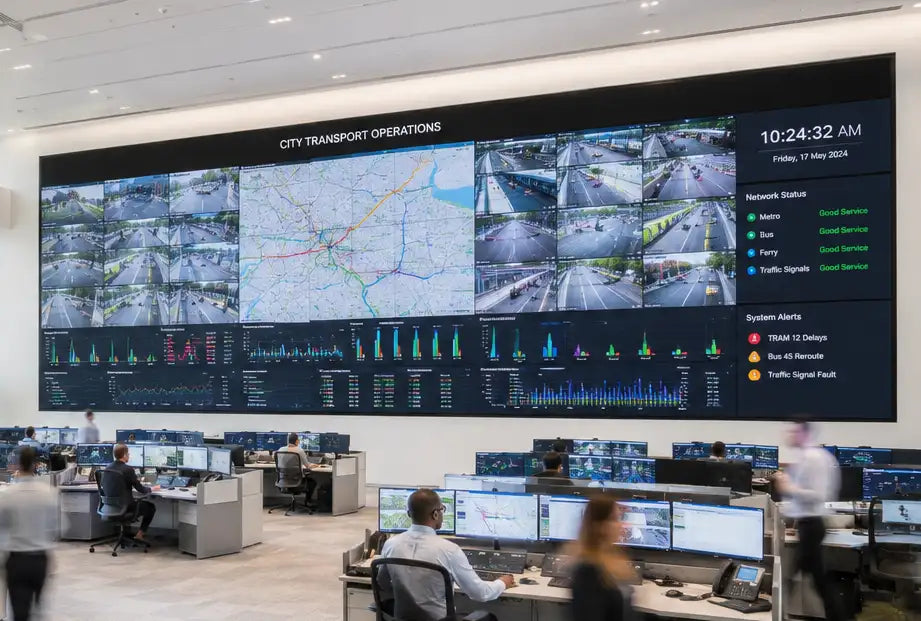

Monitor multiple sources simultaneously with seamless large-format displays engineered for continuous operation and mission-critical environments.

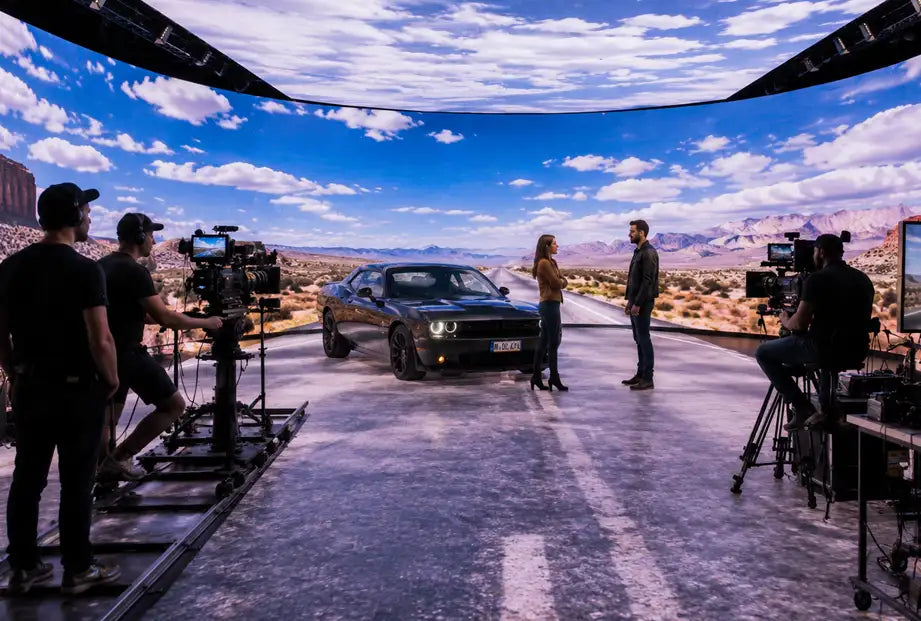

Deliver exceptional colour accuracy, high refresh rates and seamless backgrounds for broadcast sets, virtual production and live media environments.

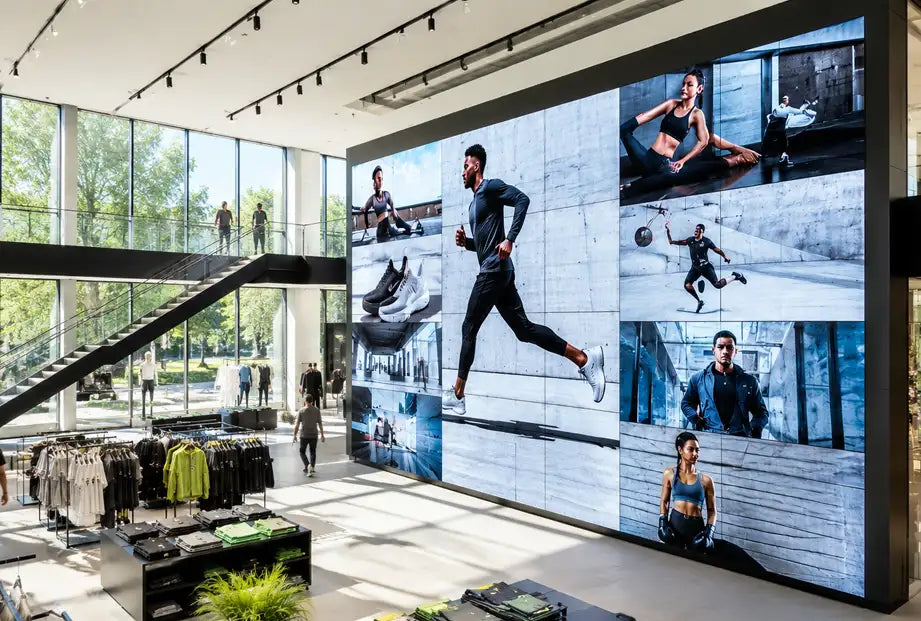

Create premium customer experiences with striking digital displays designed to showcase products, campaigns and brand storytelling at scale.

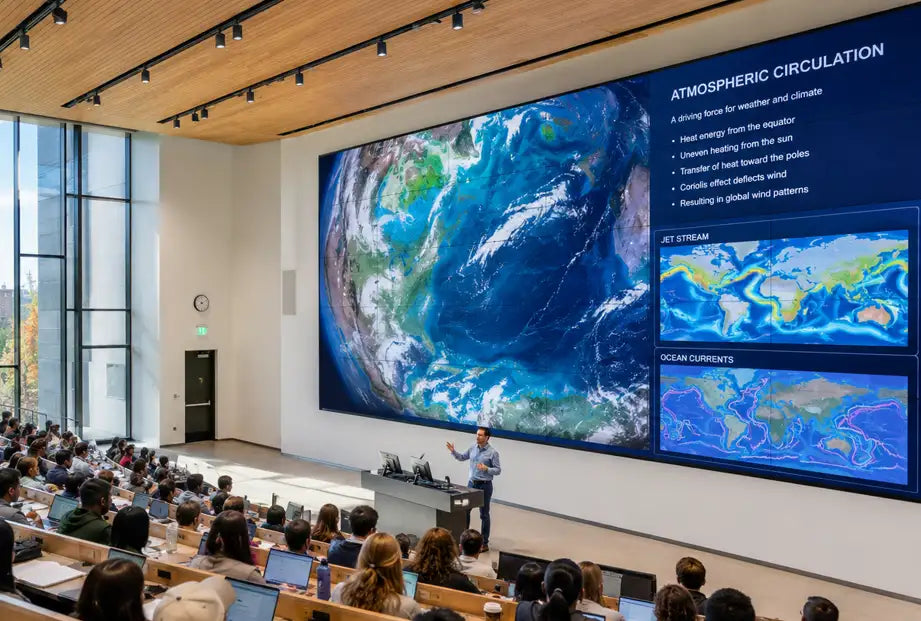

Support teaching, presentations and hybrid learning with large-format displays that ensure every detail remains visible throughout the room.
Why Organisations Choose MicroWall
What's Included With Every MicroWall
Every MicroWall system is supplied complete with all components required for installation, operation and long-term protection.

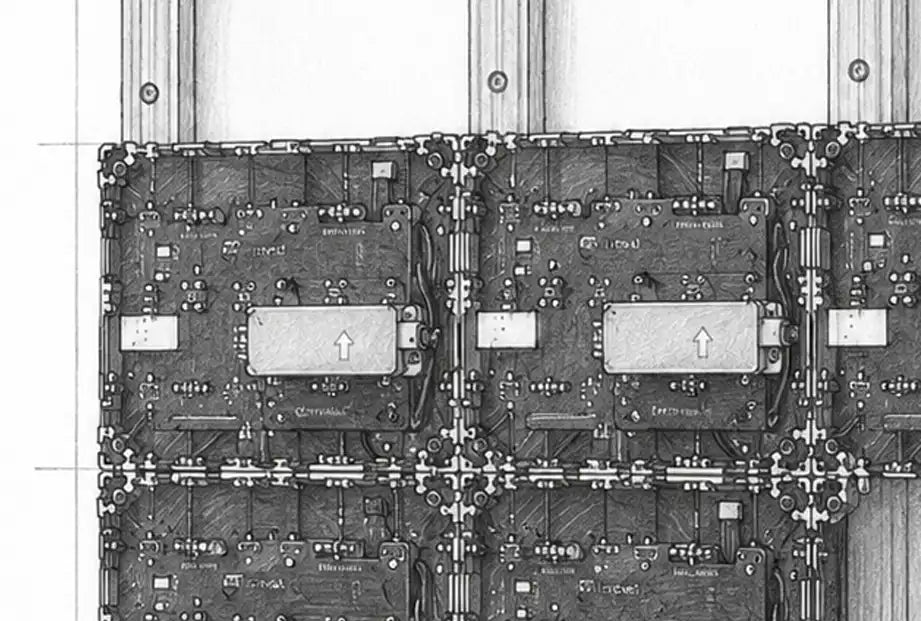

For Wall Installation
LED Cabinets
Including Spare Panels

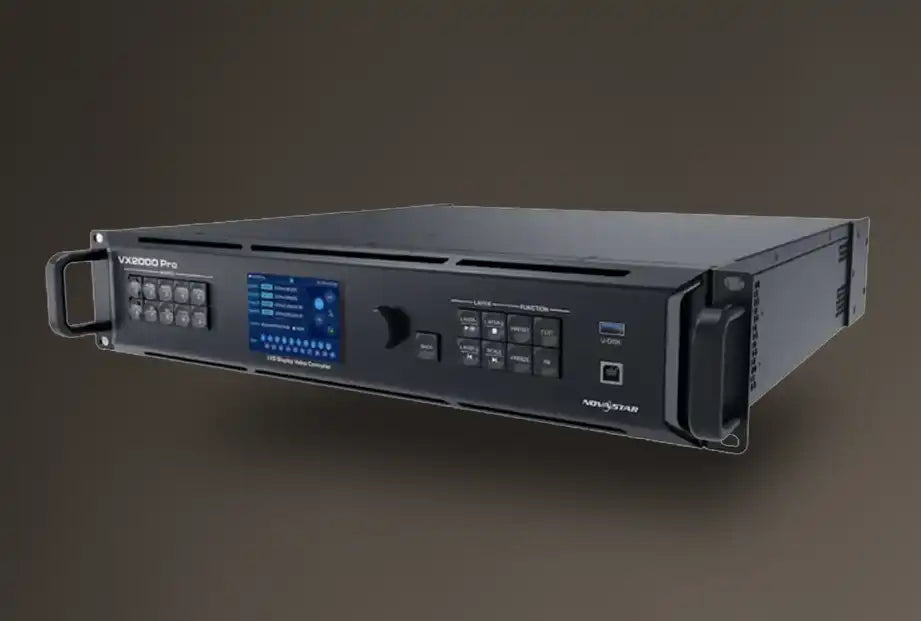

Video Processor
Cables Included
Flight Cases
MicroWall CoB Specifications
| Specification | MicroWall 0.9 | MicroWall 1.2 |
|---|---|---|
| Physical Specifications | ||
| Pixel Pitch | 0.9375mm | 1.25mm |
| LED Type | Full Flip Chip CoB | |
| Cabinet Dimensions |
600 × 337.5 × 38mm 23.62 × 13.29 × 1.50in |
|
| Cabinet Resolution | 640 × 360 | 480 × 270 |
| Panel Weight | 4kg / 8.8lbs | |
| Panel Material | Die-Cast Aluminium | |
| Module Dimensions |
150 × 168.75mm 5.9 × 6.64in |
300 × 168.75mm 11.8 × 6.64in |
| Surface Finish | Matt Finish | |
| Surface Hardness | 4H | |
| Optical Specifications | ||
| Brightness | 600 nits | |
| Grey Scale | ≥13-bit | ≥13-bit |
| Refresh Rate | 3840Hz | |
| Contrast Ratio | 15,000:1 | |
| Colour Temperature | 3000–10,000K, adjustable | |
| Viewing Angle | H160° / V160° | |
| Scan Rate | 54S | 60S |
| Frame Rate | 60Hz | |
| Driver IC | ICND1069 | ICND1065S |
| Circuit Scheme | Common Cathode | Common Anode |
| AC Operating Voltage | AC 100–240V | |
| Power Draw per Panel Maximum / Average |
85W / 29W | 76W / 26W |
| Minimum Recommended Viewing Distance | 0.9m / 3ft | 1.25m / 4.1ft |
| Default Receiving Card | BR840 Pro | BR460pro-H |
| Colour Space Capabilities | NTSC ≥105% / DCI-P3 ≥95% | |
| Application & Environment | ||
| Storage Temperature / Humidity | −40°C to +60°C / 10–90% RH | |
| Operating Temperature / Humidity | −10°C to +40°C / 10–90% RH | |
| IP Rating — Front / Rear | IP65 / IP43 | |
| LED Half-Brightness Life | 100,000 hours | |
| Module Maintenance | Front Service | |
| PSU & Other Component Maintenance | Front Service | |
| Panel Installation | Wall Mount / Custom | |
| Certifications | CCC, FCC, KCC, CE and CB | |
Power draw may vary by ±10% depending on the content displayed. Specifications are provided for reference and may vary according to the final screen configuration.
Speak to Cinema Deco
Planning a MicroLED Project?
Whether you are considering a home cinema, media room, boardroom, control room, retail display or immersive installation, our team can advise on screen size, pixel pitch, viewing distances, room layouts and installation requirements.
