Home Cinema Seating Dimensions: Complete Planning Guide

Home cinema seating has a habit of looking smaller on a floor plan than it feels once it arrives. A row that seemed comfortably proportioned can quickly fill the room when the recliners extend, the doors open and people need to reach their seats without edging sideways along the wall.

That is why planning home cinema seating dimensions involves more than adding together the width of a few chairs. You also need to allow for armrests, walkways, recline travel, spacing between rows, sightlines and access to the room. A little care at the drawing stage makes the finished cinema far more comfortable to use.

Begin with accurate finished-room measurements and mark the screen, doors, speakers, steps and equipment. Once those fixed points are clear, test complete seating arrangements using the dimensions of the actual model you intend to buy—not a generic chair symbol or an assumed number of seats.

Why home cinema seating needs careful planning

Cinema seats are usually wider and deeper than ordinary living-room furniture. Generous upholstery is part of their appeal, but powered mechanisms, broad arms, cupholders, storage compartments and control panels all add to the footprint.

A single chair’s width can also be misleading. When several seats are joined, they may share armrests; other configurations repeat an arm on both sides of every chair. Add a curved row, loveseat, chaise or occasional table and the calculation changes again.

The safest approach is to choose a likely model early and plan around its published configuration drawings. Cinema Deco’s luxury home cinema seating collection includes individual recliners, straight and curved rows, loveseats and more informal media-room arrangements. If you prefer a traditional powered chair, browse the reclining cinema seating collection.

What is a typical home cinema seat width?

There is no standard home cinema seat width. Some designs are deliberately compact; others have deep cushioning and substantial arms. The way seats connect within a row matters just as much as the dimensions of an individual chair.

The Kensington luxury reclining cinema seat is a useful example. One seat measures 1,090mm wide, but two connected seats measure 1,960mm and three measure 2,830mm. Simply multiplying 1,090mm by the number of viewers would therefore overestimate the width of the completed row.

When comparing home cinema seats, check:

• The overall width of one seat
• The manufacturer’s width for the complete row
• Whether adjoining seats share armrests
• The size of any storage consoles, trays or side tables
• Whether the proposed row is straight or curved
• The clearance needed beside walls, doors and curtains

The confirmed row dimension is the figure that matters. It reflects the actual combination of arms, modules and connectors rather than an estimate based on one chair.

How much space should be left beside cinema seats?

A row should not be wedged tightly between two walls. Even where no walkway is needed, leave a sensible installation tolerance for the upholstery and access to skirting, sockets or nearby controls. If people need to pass along the side, the gap must be planned as a proper clear route rather than leftover space.

Always work from the finished internal dimensions. Fabric wall systems, acoustic treatment, joinery, curtains and decorative columns can take a surprising amount from the structural shell. A room surveyed before those finishes are designed may end up narrower than expected.

How wide should home cinema walkways be?

In a private home cinema, a clear side passage of about 600–750mm can be a useful starting point. A frequently used main route will usually feel more comfortable at roughly 750–900mm. These are early design allowances, not universal rules; the right width depends on the room, the number of occupants and any accessibility or escape requirements.

Measure the clear passage at its narrowest point. An armrest, door handle, drinks table or extended footrest can reduce a walkway that looked generous on the first plan.

Commercial cinemas, shared residential amenities and larger auditoria require project-specific professional advice. In England, the UK Government’s Approved Document M includes guidance on access, accessible routes and wheelchair spaces.

Fire safety is a separate consideration. Approved Document B provides guidance on relevant fire-safety requirements in England. Occupancy, building type and local regulations will determine what is required for a particular project.

How much recline space does a cinema chair need?

A powered recliner changes shape as it opens. Plan only around its upright depth and the footrest may meet the row in front, block a walkway or leave the chair unable to recline against the back wall.

Ask the manufacturer for three measurements:

• Upright depth: the chair’s footprint when closed
• Fully reclined depth: its maximum front-to-back dimension in use
• Wall clearance: the space needed behind it for the mechanism to work

The difference between open and closed positions can be considerable. The Cinema Deco Kensington, for example, is 1,040mm deep when upright and approximately 1,650mm when fully extended.

A wall-hugger mechanism reduces the amount of space required behind the chair by moving the seat forwards as it reclines. Selected Cinema Deco models need approximately 250mm of rear clearance. The name can be slightly deceptive, however: the footrest and the viewer’s legs still need clear space in front.

Draw each chair twice—once upright and once fully reclined—and include a modest tolerance. Published dimensions should guide the plan rather than become exact construction lines. Upholstery, plugs, floor finishes and ordinary site variation can all make a few millimetres of difference.

Do doors and equipment need extra clearance?

Yes. Check the full swing of every inward-opening door against seats, footrests and side tables. AV racks, sockets, ventilation grilles and removable service panels also need to remain accessible after the room is furnished.

Include speakers in the same drawing, particularly any positioned beside or behind the seats. Moving a speaker at the end of the project can compromise the sound; moving the seating can disturb sightlines and circulation. It is much easier to resolve both at the same time.

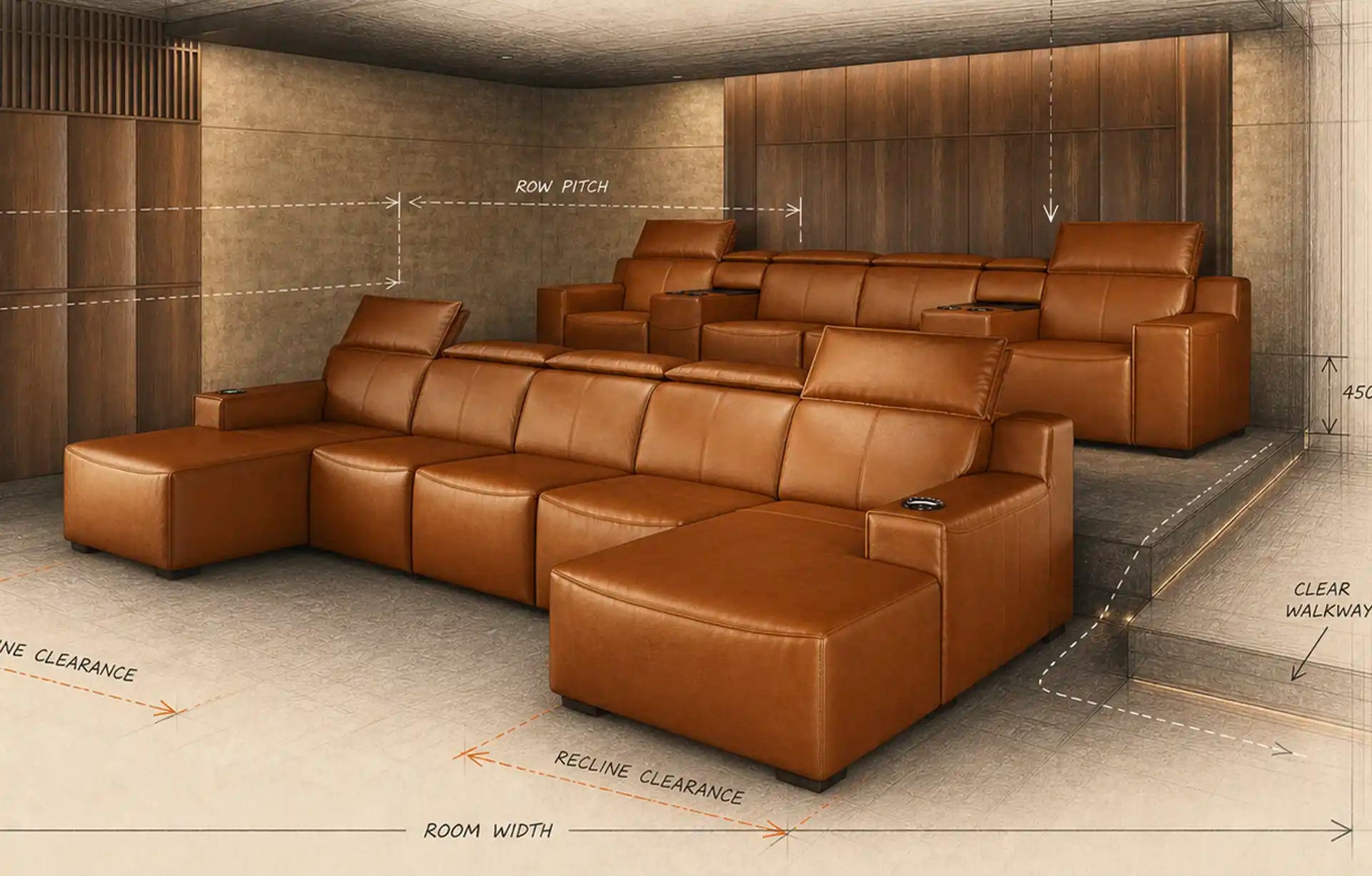

What is the right spacing between cinema seating rows?

Cinema seating row spacing is usually described as row pitch: the distance from the same reference point on one row to that point on the next. It is not simply the visible strip of carpet between two upright backrests.

For an early layout, reclining cinema seats may need a pitch of approximately 1,400–1,700mm or more. A compact upright seat can require less. Treat these figures as a way to test whether the room is broadly viable; the chosen chair’s full dimensions must determine the final plan.

Row pitch is affected by:

• The chair’s depth when fully reclined
• The travel of the footrest and the position of the viewer’s legs
• Whether someone must pass while another seat is open
• The depth and location of a raised platform
• The seated height of the person in front
• The size and mounting height of the screen

It is possible for two rows to fit on paper and still be irritating in daily use. Ideally, someone should be able to reach or leave a seat without requiring everyone ahead of them to close their footrests.

For rooms suited to a conventional arrangement, our guide to straight-row theatre seating for the home looks more closely at layout and positioning.

How should a second row and cinema platform be planned?

Raising the second row can give everyone a clear view, but platform height cannot be decided in isolation. A taller riser may improve the sightline while creating an awkward step, a need for guarding or too little headroom.

Test the view using the rear viewer’s seated eye height and the likely head height of someone in the front row. The line of sight should reach the important part of the screen without forcing the rear viewer to stretch or sit unnaturally upright.

The platform must be deep enough for the entire rear-row arrangement, including the seat mechanism, recline movement and safe circulation around any step. Seat feet and moving parts should remain properly supported in every position.

Screen height and size will change the result, so test them at the same time. Cinema Deco’s guide to choosing a home cinema screen size explains how viewing distance, room proportions and image format affect one another.

Should you plan the seats or the screen first?

Plan them together. Fix the screen too early and the best viewing position may fall in the middle of a walkway. Fix the seats first and you may discover that the screen must sit uncomfortably high or feels too large from the front row.

Begin with the usable room dimensions and a realistic seating capacity. Establish a comfortable viewing distance, check the screen height and then review the walkways and recline clearances. A good plan usually comes from repeating this process several times rather than forcing the first arrangement to work.

This is particularly important with very large displays. Cinema Deco’s MicroWall CoB MicroLED display is built from modular cabinets, allowing the screen dimensions and aspect ratio to be developed alongside the seating distance, wall width and number of viewers.

Our guide to designing a media room around seating, screens and sightlines gives a broader overview of how these elements work together.

Straight rows, curved rows or modular cinema sofas?

A straight row generally makes efficient use of width and is easy to set out. In a dedicated cinema, where everyone faces one screen, it is often the cleanest and most practical arrangement.

A curved row turns the outside seats gently towards the picture and can give the room a strong architectural shape. It may also occupy more width and depth than a straight row with the same capacity. Use the manufacturer’s complete plan dimensions rather than attempting to estimate the curve. The Richmond reclining cinema seating, for example, is offered in several row configurations that can be planned around the room.

A modular sofa suits a room that is expected to do more than host formal film nights. Deep cushions and chaise sections can take up generous floor space, but they create an easier setting for family television, conversation and entertaining. Cinema Deco’s luxury modular cinema sofa collection is designed for this more relaxed style of media room.

Home cinema seating dimensions: a practical checklist

Before ordering the seating, confirm:

1. The room’s finished internal width, length and ceiling height
2. The screen dimensions and its height above the finished floor
3. The upright and fully reclined depth of every chair type
4. The manufacturer’s width for each complete row
5. The clear width of every walkway at its narrowest point
6. The position and opening direction of each door
7. All platforms, steps, level changes and areas of restricted headroom
8. Speaker, socket, control, ventilation and AV-rack positions
9. The depth of acoustic finishes, curtains and joinery
10. The seated sightline from every proposed row

A scaled drawing is essential, but a full-size check on site can be even more revealing. Mark the row width, reclined chair depth and walkways on the floor with low-tack tape. Walking through the proposed layout often exposes a tight corner or awkward route that was easy to overlook on a screen.

Choosing home cinema seating that fits the room

There is no single ideal set of home cinema seating dimensions. What matters is the complete arrangement: row width, recline clearance, circulation, platform depth, viewing distance and sightlines all need to work within the finished room.

Resolving those details early prevents cramped walkways, unusable recliners and expensive alterations after the interior is complete. Cinema Deco offers luxury reclining cinema seats and modular cinema sofas for rooms of different sizes and styles.

If you would like help testing a particular arrangement, contact Cinema Deco with your room dimensions, preferred capacity and seating style.
